Extrim

(0.0/5)

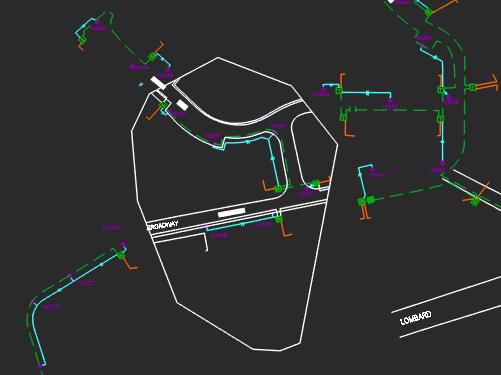

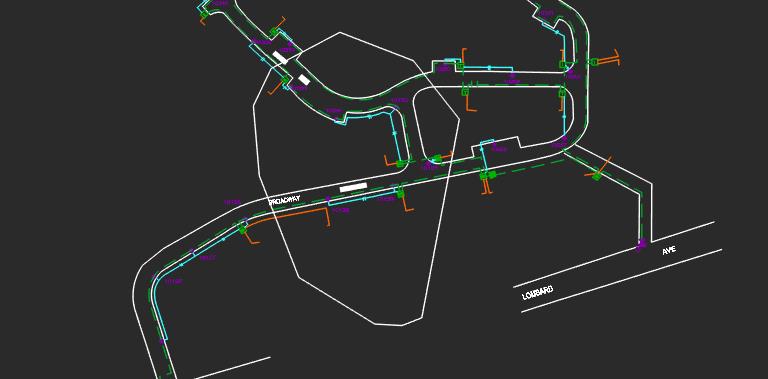

The command trims objects overlapping a closed boundary, it trims objects of the selected side of the closed boundary.

$00

Features

1. Start the command by typing EXTRIM.

2. Choose a boundary for closed object like circle, rectangle or closed polyline as cutting edge

3. Specify whether you want to trim Inside or Outside the boundary.

4. The selected side will be trimmed
